KY ED560, EagleBurgmann ED560, Double Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Pumps: Submersible pumps, sewage pumps. Applied to the muddy water, sewage water or weakly corrosive fluids with solid grains.
Temperature: -20°C~100°C
Pressure: ≤0.5MPa
Speed: ≤ 8 m/Sec

Preview the KY ED560 PDF File

Download KY ED560, EagleBurgmann ED560, Double Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

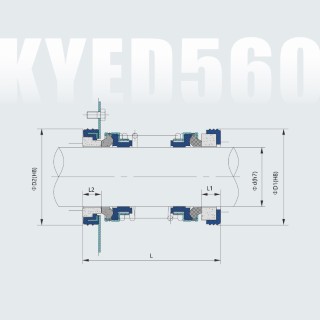

Part Numbers	d	D1	D2	L	L1	L2
KY ED560-12	12	25	25	36	5	5
KY ED560-13	13	25	25	36	5	5
KY ED560-14	14	30	30	36	5	5
KY ED560-15	15	30	30	36	5	5
KY ED560-16	16	30	30	36	5	5
KY ED560-18	18	35	38	49	7	7
KY ED560-19	19	35	38	49	7	7
KY ED560-20	20	38	44	49	7	7
KY ED560-25	25	44	50	51	7	7
KY ED560-30	30	50	57	59	9	8
KY ED560-35	35	58	64	61	9	9
KY ED560-40	40	64	70	64.5	11	9
KY ED560-45	45	66	70	65	10	9
KY ED560-50	50	72	80	69.5	10	9
